- Control 64 cameras (Up to 255 cameras)/32 monitors
- 16 Korean / 32 English Characters support
- Can be inserted Video Card (DVC-6432) – Up to 16 cards (1 card of DVC-6432:
64-Input, 2-Output).
- Can be connected 3 of Video Input extension bay units (Processing of
64 Camera Inputs), control up to 256 Cameras.
- Each Video Card (DVC-6432), built-in I/D, TIME Generator
- When monitor switching in automatics to manuals, it is a built-in function
of anti-noise of synchronizing signal on monitor then happen to smooth switching
screen
- With DCK-255 (matrix Controller Keyboard), it can be controlled, up to
8-Sub Keyboard.
- Built-in function relayed Alarm system (DAR-080, DAR-241), it can be
input up to 512 Sensors.
- Can be connected P/C directly due to built-in RS-232 Port.
Overview

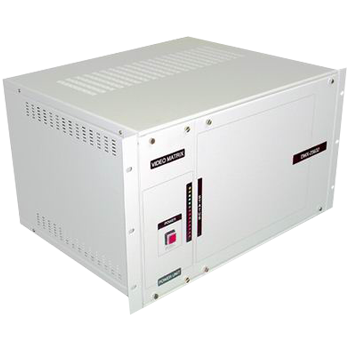

Video Matrix Switching System can switch any video inputs to any of the video
outputs (monitors, picture storage units, video printers etc.). It connects the
associated camera to the alarm monitor in the event of an alarm.
Performance Features
The predefined video recorder or picture storage unit is activated. A predefined
position can be automatically selected in the case of PTZ cameras. The following
features can be setup by the user:
• Assignment of alarm lines to cameras
• Assignment of the alarm picture selection to alarm monitors
• Definition of group and individual switching
The alarms can be applied to the Video Matrix Switching System as a contact or a
message via the system keyboard. In addition to the switching of pictures, it is
also possible to remotely-control PTZ cameras including preset positions. On-screen
displays are possible for the time and date as well as text inserts for identifying
cameras/alarms and definition of camera sequences.
Specifications
|
System
|
I/O Card Slot 16EA
Network Card Slot 1EA
Keyboard Interface
RS232 In Interface
CCTV Receiver Control Interface
Alarm Interface
Network Interface
|
|
Function
|
256By 32 Video Matrix Control
Video Input Bay Unit Connection (Max 3Set_)
256 CCTV Receiver Control
Sub Keyboard Control Port
Network Matrix Camera
|
|
Display
|
16 32 DISPLAY
Date/Time Display
Alarm, Status Display
|
|
Camera Input
|
|
|
Monitor Output
|
|
|
Data Backup
|
|
|
Communication
|
CCTV Receiver-9600, N, 8, 1
Sub Keyboard-9600, N, 8, 1
RS-232C-9600, N, 8, 1
ARU-1200, E, 8, 1
|
|
Power Consumption
|
Power Supply 220V 350W 120W(Card 16)
|
|
Operating
Condition
|
|
|
Weight
|
|
|
Dimensions
|
430(W) x 265(H) x 350(D)mm
|
|
