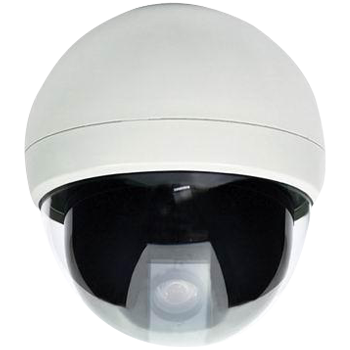

MODEL

DSC-230Si

Signal system

NTSC

PAL

Image sensor

1/4 “ SONY Super HAD

Number of total pixels

811(H)X508(V), 410K

795(H)X596(V), 470K

Number of effective pixels

768(H)X494(V), 380K

752(H)X582(V), 440K

Horizontal resolution

More than 480 TV Lines

Lens

22x Optical zoom, F 1.5(Wide) - 3.8(Tele), f =3.9- 85.8mm, Video AF

Digital zoom

  10x (Total zoom 220x)

Minimum Shooting Distance

0.01m(Wide), 1.0m(Tele)

Minimum illumination

Luminance S/N ratio

More than 48dB(AGC Off)

OSD

On/Off

Video output

1 Vp-p Composite video output 75 ohm terminated

Sync System

Internal / External (Line Lock)

Focus mode

Auto/manual/Oneshot

Brightness control

Level control (Up/Down)

White balance

Auto / Push Auto

BLC Control

BLC Level (Up/Down)

Iris Control

Auto / Manual (Iris Up/Down)

AGC Control

Auto / Maual ( Up/Down Control)

Shutter speed control

1/60 - 1/10,000 sec, 28 steps

1/50-1/10,000 sec, 28 steps

Flickerless set

Off/On(1/100 sec shutter set)

Off/On(1/120 sec shutter set)

DSS(Digital Slow Shutter)

Max. 128 Fields

Negative / Positive

Negative On / Off

Elevtronic Sensitivity up

Auto : x2, x4, x6, x10, x16, x32, Fix : x2, x4, x6, x10, x16

Auto flip

On / Off

Pan rotation angle

360° Endless

Pan speed

Manual:0.1°-250°/sec (64 levels), Preset: Max 360°/sec (64 levels)

Max speed control

Lower / Middle / High

Tilt rotation angle

-2° ~ 90°

Tilt speed

Manual:0.1°-90°/sec (64 levels), Preset: Max 200°/sec (64 levels)

Preset point

128 Presets

Preset Speed

0.1°-360°/sec (64 steps)

Preset Accuracy

+/-0.2°

Alarm Ch.

4-input ch./1-output ch.

Alarm Resume Control

Off, 1~180 sec.

Communication System

RS-485/422

Environment

Indoor

Operating temperature

- 15° C to 60°

Storage temperature

- 5° C to 60°

Operating Humidity

Less than 90%RH

Dimensions

189ø(Diameter) x 224(Height) mm

Weight

About 3.2Kg

Construction

Ivory body (ABS), Anti-Vandal bubble (Poly-Carbonate)

Power consumption

18W (Max)

Power supply

AC24V 60/50 Hz
