- 500-watt high-power, high-efficiency Tracking Downconverter power amplifier
- 22 to 100 Hz frequency response (+0, -3 dB)
- Greater than 108 dB peak SPL with room gain
- Long-throw Sunfi re premium drivers
- Auto signal-sensing turn-on and stand-by mode
- Line level unbalanced inputs
- Speaker level binding post inputs
- Line level high-pass outputs
- Continuously variable phase control and crossover frequency adjustment
- Continuously variable volume level control
- Soft clipping circuit allows graceful overload and prevents speaker damage
due to clipping
- Gold-plated inputs and outputs
- IEC-style detachable line cord (120V AC only)
- Dimensions: 9"x 9"x 9"

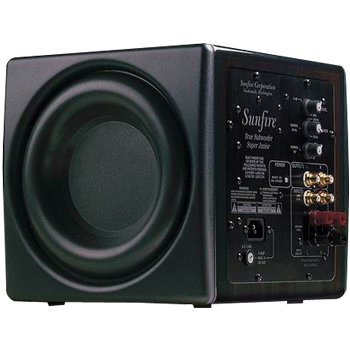

Overview
"When you first see it, you won't believe it's capable of delivering significant
bass. And when you first hear it, you'll search the room to see if someone has sneaked
in two of them." Stereo Review's Sound and Vision We took a good thing and made
it, well…smaller, both in size and price. The Sunfire True Subwoofer Super Junior
fits any room and any budget.
Performance Features
Using the same patented amplifier and speaker technology as its award winning
big brothers, "Junior" packs serious bass into a tiny nine-inch cube. It's perfect
for entry-level systems coupled with A/V receivers or lower-priced A/V preamps.
Super Junior woofer matches up very well with bookshelf loudspeakers as well as
floor standing speakers.
Design Features
The Super Junior's modest price and diminutive size also make it ideal in installations
not suited for a single larger sub. Good placement of one woofer provides bass extension
with even dispersion…two woofers guarantee it. Connect a desktop PC with DVD drive
and high resolution monitors to DSL (or faster connection) to the Internet and you
have a direct pipeline into a vast storehouse of music and videos. Super Junior
can add impact and detail to any desktop music system, as well as bringing thunderous
realism to PC video games - while taking up a minimum of space.
Specifications
Amplifier Output |
1500W |
High Cut Filter |
30Hz-100Hz |
Frequency Response |
22Hz-100Hz |
SPL (peak with room gain) |
>108dB |
Total Harmonic Distortion |
below audibility 22Hz-10Hz |
Input Sensitivity, left input(10) |
250mVrms
60mVrms |
Input Sensitivity, right input(10) |
.75mVrms
200mVrms |
Input Impedence, line level |
30k |
Input Impedence, hi level |
5.6k |
Internal Gain, left input(n) |
50dB / 62dB |
Internal Gain, right input(n) |
40dB / 52dB |
Dimensions |
9 x 9 x 9 |
Weight |
29lbs |
|
