- UHF
- FM radio
- DAB
- Satellite signal
- SKY OUTLET
- UHF signals
- Uplink cable from RF2.
Overview
This amplifier finds its main application as a line extender in small CATV networks.
In the Main Unit these signals are combined with the VHF and are amplified to provide
4 TV outputs, each including the already decoded SKY TV program supplied by the
SKY Digibox RF2 output.
Allows data by-pass to use remote link eyes to change channel on the Sky & Sky plus
Digital Satellite Receiver.

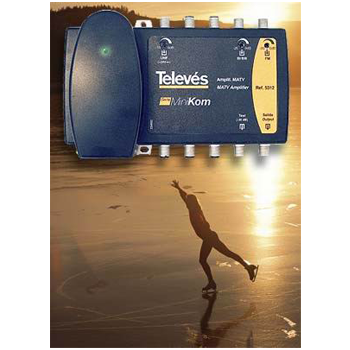

Main module from Televés recommended use is in
conjunction with the Televés 5716 additional module. The main module is mains
powered and when installed with the optional module is Sky+ Compatible.
It combines UHF, FM radio, DAB and satellite signal sources onto a single downlink
output that feeds SKY & OUTLET. UHF signals from this outlet are fed back to the
unit via an uplink cable from RF2.
Specifications
| Band |
FM |
BI/BIII |
UHF |
| Gain (dB) |
30 ± 2 |
33 ± 2 |
42 ± 3 |
| Maximum output level (DIN 45004B) (dBµV) |
>115 typ |
>115 typ |
>116 typ |
| Noise figure (dB) |
< 7 typ |
< 6 typ |
< 6 typ |
| Attenuator (dB) |
0 - 20 |
0 - 20 |
0 - 15 |
| 2nd orden distortion (Vo=115dBµ) (dB) |
50 |
50 |
- |
| Mains voltage (V~) |
230 ± 10% |
| Max. power consumption (W) |
9 |
| Input DC bypass (automatic) (mA)
|
- |
- |
60 max. (24V=) |
| Protection Level |
IP 20 |
|
