- Provides true independent temperature control by zone
- Built-in test buttons automatically confirm operation
- Alter four separate zones' thermostats to heat or cool as desired
Overview
Designed to work with the
Aprilaire® Programmable Thermostat,

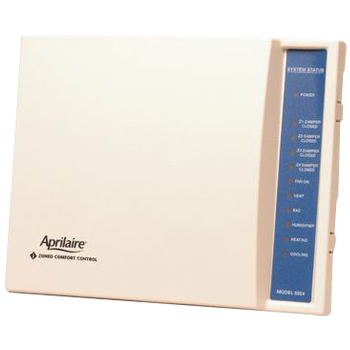

the Aprilaire® 4-Zone Comfort Control System goes well beyond controlling heating
and cooling and into the role of orchestrating the entire HVAC system to increase
your comfort and convenience while saving you energy and money.
Performance Features
The 4-Zone Comfort Control System works as the nerve center that provides a central
wiring hub and information interchange for the system along with the Programmable
Thermostat to work with single or multi-stage forced air heating/cooling equipment
and control two, three, or four zones.
To operate the system, just set each zone's thermostat to your desired comfort.
Information is then shared among thermostats through the 4-Zone Comfort Control
System to optimize performance and convenience. This means you can turn on/off,
adjust or simply view any thermostat from any other thermostat. Service reminders
help keep all the systems working at peak performance.
Aprilaire's® 4-Zone Comfort Control System acts as a central wiring hub and information
interchange for the system with a Programmable Thermostat in each zone.
Specifications
| Control Panel Input Voltage:
|
20-30 VAC |
| Power Requirement:
|
40 VA |
| Max. current through EAC terminals:
|
1 amp @ 24 VAC |
| Max. current through ERV/Vent
terminals: |
1 amp @ 24 VAC |
| Damper Voltage: |
18-30 VAC |
| Damper Fuse: |
3 amp, fast acting |
| Outdoor Temperature Sensor:
|
RPC Model 8052 |
|
