- Simple programming and operation
- Saves time, money, and helps you stay comfortable
- Large backlit display Accurate, digital controls
Overview
Combining easy programming, pinpoint accuracy and digital controls provides both

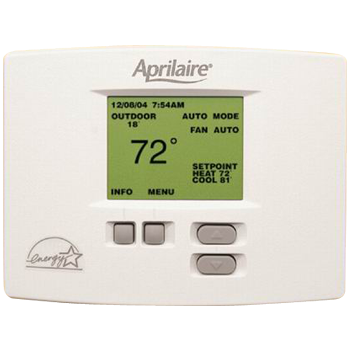

comfort and energy savings. Aprilaire®'s Programmable Thermostat offers temperature
accuracy and comfort control. An easy-to-read backlit display and intuitive programming
make it a cinch to use. Friendly, non-intrusive service reminders ensure an efficient
and consistently comfortable indoor environment.
Performance Features
Aprilaire®'s Programmable Thermostat is pre-programmed with Energy Star® settings,

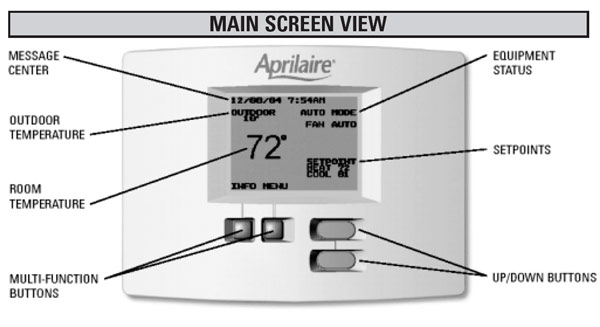

and it automatically adjusts for daylight savings time. The large main display assures
you can easily view set points, outdoor/remote temperature, fan status and the network
communications at a glance. The main display provides all information about the
comfort settings and current conditions, including: room temperature, mode of operation,
heat/cool set points, Fan ON or AUTO, remote or outdoor temperature (with optional
sensor), relative humidity (with optional sensor) and more.
Design Features
The Programmable Thermostat is the exclusive portal for
Aprilaire®
4-Zone Intelligent Zone Control System , which acts as a central
wiring hub and information interchange for the system with a premium thermostat
in each zone. Information is shared among thermostats through the 4-Zone Comfort
Control System to optimize performance and convenience; you can turn on/off, adjust
or simply view any thermostat from any other thermostat
Specifications
| Thermostat Voltage: |
24-volts ±20% AC or DC |
| Max. Total Load Current:
|
2A |
| Max. Load Current thru Single
Output: |
1A |
| Solid State Output Residual
Current: |
Less than 5 mA |
| Voltage Drop at Solid State
Outputs: |
Less than 1-volt |
| Operating Range:
|
32°F - 99°F (0 C - 37 C) |
| Display Accuracy:
|
±1°F between 60°F and 80°F,
±2°F outside this range |
| Control Accuracy:
|
±1°F |
| Control Range Heat:
|
40°F - 88°F (4 C - 30 C) |
| Control Range Cool:
|
42°F - 90°F (6 C - 32 C) |
| Heat/Cool Deadband:
|
2°F or C |
| 1st Stage Differential:
|
Adjustable 1°F - 3°F (1°F default) |
| 2nd Stage Differential:
|
Adjustable 1°F - 3°F (1°F default) |
|
