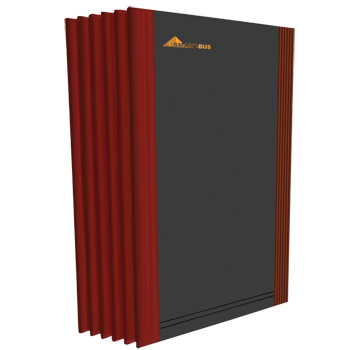

Wall mounted thus, there is no need DB for cabinet, it can be used in any location that require energy saving, Intelligent control such as Convention Center, Hotel, Shopping Mall, Residential Building, Banquet Room, Stadium, Airport, Theme Park, Gymnasium, Intelligent Villa, Smart Mansion.

Features

• 10 Bit dimming accuracy
• Wire bypass function .
• Maximum separate 12 areas
• Up to 99 show sequences, 99 steps for each sequence 0.1s to 60 minutes interval between each step. Each show sequence has 4 running mode of “Forward”, “Backward”, and “Bounce, Random”.
• Low threshold, high threshold and maximum threshold are available to suit different loads of each channel.
• Emergency bypass switch in each channel
• Built in power supply 250mA current （DC24V）
• Remark information provided in each scene, area, sequence and channel
• Installed with emergency fire protection switch
• Device can be restored to previous scene or designated scene after Power restore

Specifications

Power Input: Three phase AC 380V
Power Consumption: 250mA/DC24V
Ambient Conditions:
Working Temperature: -10℃～+45℃
Working Relative Humidity: 20% - 90%
Storage Temperature: -40℃- +55℃
Storage  Relative Humidity: 10% -  93%
Output Channel: 6ch dimmer
Installation: Wall mounting .
Output current in each channel: Maximum 20A per channel, total current in 6 channels is 120A
Protection: Short circuit, over load, grounding fault protection
Communication: Smart-BUS

Dimensions

Front: 470 ×290 ×162(mm)

Applications

• Towers and Hotels Halls
• Palace and Big Villa
• Airport and Malls
