- External 20A regulated power supply, enabling a range of nominal output
voltages
- Controller supply voltage range selectable with internal link to 18-32V
DC (standard) or 12-15VDC.
- 6 x 5A regulated pulse-width modulated common voltage mode outputs
- 1 x RS485 DyNet and DMX512 serial port
- Dimensions H 86mm x W 209mm x D 66mm
- Packed weight 1.0kg
Overview

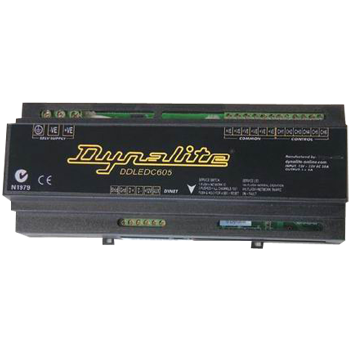

The DDLEDC605 is designed to control LED loads in decorative architectural lighting
applications where creative colour mixing and sequencing is required. The controller
provides six pulse width modulated common anode voltage mode outputs suitable for
directly driving high intensity LED sources. The controller is designed for conection
to an external DC power supply enabling the unit to deliver a range of nominal output
voltages. The device is supplied with a DIN rail mountable housing, designed for
installation within a switchboard or suitable electrical enclosure. The DDLEDC605
is DMX512 compatible and is suitable for the high chase speeds commonly found in
display lighting.
Specifications
| Supply |
- External 20A regulated power supply
- Controller supply voltage range is
selectable with internal link to 18-32VDC
(standard) or 12-15VDC. |
| LED Outputs |
- 6 x 5A voltage mode, common anode
- Nominal output voltage is equal to the
supply voltage, less internal voltage drop
of max 0.5V
- Outputs are short circuit protected with
integral self-resetting thermal overload
protection |
| Maximum Total Box Load |
20A |
| Control Inputs |
1 x RS485 DyNet/DMX512 serial port |
| User Controls |
Service switch
Diagnostic LED |
| DyNet DC Supply |
100mA (supply for approx. 5 Smart Panels) |
| Preset Scenes |
170 |
| Supply Terminals |
Positive, Negative, Earth
1 x 4mm2 max conductor size |
| Output Terminals |
CH, COM for each channel
1 x 4mm2 max conductor size |
| Diagnostic Functions |
Device Online/Offline status |
| Compliance |
CE, C-Tick |
| Operating Environment |
0º to 40ºC ambient temperature
0% to 95% RH non condensing |
| Construction |
ABS DIN Rail enclosure (12 unit) |
| Dimensions |
H 86mm x W 209mm x D 66mm |
| Weight |
Packed weight 1.0kg |
|
