SH689 DYNALITE 12x20A Relay Controller

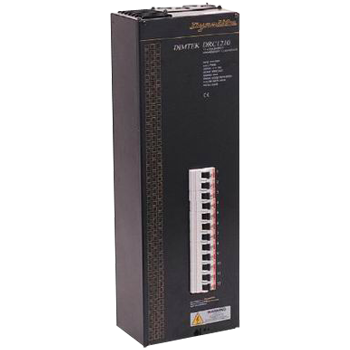

DYNALITE 12x20A Relay Controller

  • 230V 50/60Hz three phase supply at 80A
  • 12 switched outputs at 20A
  • Maximum total load 240A
  • Each output protected by a 20A MCB
  • 12 Button keypad Interface
  • 4 0-5V/0-10V DC analogue control inputs
  • Dimensions H 555mm x W 200mm x D 120mm
  • Packed weight - 10.25Kg
  • Option - DRC1220A Dual Port DyNet & DMX512

Overview

The DRC1210 and DRC1220 are 12 channel relay controllers, with a maximum load per channel of 10A and 20A respectively. They are used for switching both lighting and non-lighting loads. Both controllers have an optional accessory card for control of electronic dimmable ballasts. In areas where it is beneficial to sequentially switch on large lighting loads, such as factories and indoor sporting arenas, the DRC1210 and DRC1220 can be programmed to stagger the switch on of the lights, to minimize peak demand current.

Specifications

Supply DRC1210 - 230V 50/60Hz three phase &
neutral at 40A per phase
DRC1220 - 230V 50/60Hz three phase &
neutral at 63A per phase
Outputs DRC1210 - 12 x switched outputs at 10A
(total device load is 120A)
DRC1220 - 12 x switched outputs at 20A
(total device load is 189A)
Protection DRC1210 - 12 x 10A 6kA single pole
thermal magnetic circuit breakers
DRC1220 - 12 x 20A 6kA single pole
thermal magnetic circuit breakers
Switching Device DRC1210 – Relay 16A nom. (resistive)
DRC1220 – Relay 30A nom. (resistive)
Control Inputs 1 x RS485 DyNet serial port
1 x programmable dry contact AUX input
User Controls Service Switch
Diagnostic LED
Override switch - All channels to 100%
Internal Controls Programmable Logic Controller
Dynalite Accessory Module enabled
DyNet DC Supply 90mA (supply for approx. 4.5 Smart Panels)
Preset Scenes 170
Supply Terminals Line1, Line2, Line3
1 x 25mm2 max conductor size
Output Terminals Line for each channel
1 x 6mm2 max conductor size
Neutral Link bar provided
Earth Link bar provided
Cable Entry Mains – 4 x 25mm dia. knockouts mounted
on a 100mm x 50mm removable gland plate
Data – 1 x 25mm dia. knockout
Diagnostic Functions Device Online/Offline status
Circuit breaker trip reporting (optional)
Current measurement (optional)
Circuit run time tracking (optional)
Compliance CE, C-Tick
Operating Environment 0ș to 50șC ambient temperature
0% to 95% RH non condensing
Construction Alloy/Steel wall mount case with epoxy
Dimensions H 555mm x W 200mm x D 125mm
(excludes wall brackets)
Weight 10.25kg
