SH688 DYNALITE 12x10A Relay Controller

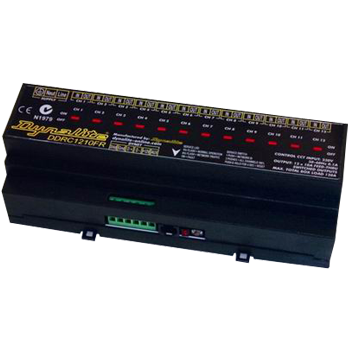

DYNALITE 12x10A Relay Controller

  • 230V 50/60Hz single phase & neutral at 0.1A
  • 12 x switched feed thru outputs at 10A (inductive).
  • Maximum device load 120A
  • 1 x RS485 DyNet serial port
  • 1 x programmable dry contact AUX input
  • Dimensions H 86mm x W 209mm x D 66mm
  • Packed weight 1.0kg

Overview

The DDRC1210FR is designed to control any type of switched load. The power circuit is of a “feed through” design and is electrically equivalent to a 12 pole contactor, with the additional advantage of each pole being separately controllable via the DyNet network. The DDRC1210FR is DIN rail mountable, designed to be installed in a switchboard next to the circuit breakers feeding the circuits to be controlled. Each channel is fitted with a hardware override switch which is accessible from the front panel.

Specifications

Control Supply 230V 50/60Hz single phase & neutral at
0.1A
Outputs 12 x Switched feed thru outputs at 10A
(inductive)
Maximum Device Load 120A
Control Inputs 1 x RS485 DyNet serial port
1 x programmable dry contact AUX input
User Controls Service Switch
Diagnostic LED
Override switch for each channel
Internal Controls Programmable Logic Controller
DyNet DC Supply 120mA (supply for approx. 6 Smart Panels)
Preset Scenes 170
Supply Terminals Line, Neutral, Earth
1 x 4mm2 max conductor size
Output Terminals Line In, Line Out for each channel
1 x 4mm2 max conductor size
Diagnostic Functions Device Online/Offline status
Circuit run time tracking (optional)
Compliance CE, C-Tick
Operating Environment 0º to 50ºC ambient temperature
0% to 95% RH non condensing
Construction ABS DIN rail enclosure (12 unit)
Dimensions H 86mm x W 209mm x D 66mm
Weight Packed weight 1.0kg
