- 230V 50/60Hz single phase supply at 5A
- 4 x outputs at 1A, dimmed or switched (module dependant) + 4 x outputs
DSI/1-10V Ballast control (fixed module)
- DIN Rail enclosure (12 unit)
- Will accept 1 x output modules, which are plug in for ease of service
- Available output modules include: - 4 x 1A dimmer module (LSDM401) -
4 x 1A relay module (LSRM401) - 1 x 5A dimmer module (LSDM105) - 2 x fan controller
- 3 speed (LSFCM202) - 4 x DSI/0-10V Ballast module (fixed)
- Programmable Logic (8 Tasks)
- 365 day time clock with sunrise/sunset & daylight saving functions
- 1 x RS485 DyNet serial port
- Dimensions H 85mm x W 210mm x D 66mm
- Packed weight 1.0kg
Overview

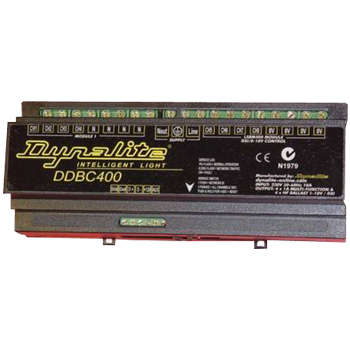

The DDBC400 is designed to control 1-10V and DSI high frequency fluorescent ballasts
and has the facility to also control dimmed and switched loads. The DDBC400 has
two output modules. One is fixed as a 4 channel HF ballast controller that can be
configured for 1-10V or DSI operation. The other output module is a plug-in type
which can control a variety of loads, simply by selecting an appropriate output
module.
The plug-in modules also facilitate ease of servicing. The device is DIN rail
mountable, designed to be installed in a switchboard, optionally next to circuit
breakers feeding the circuits to be controlled. The DDBC400 can operate as a stand-alone
unit or as part of an integrated system when connected to a DyNet network.
Specifications
| Supply |
230V 50/60Hz single phase & neutral
at
5A |
| Outputs |
Module 1: User definable
Module 2: 4 x 1-10V and DSI HF ballast
control |
| Available output modules |
LSDM401 4 x 2A leading edge dimmer
module, 5A max module load
LSRM401 4 x 2A relay module, 5A max module load (resistive) relay
contacts TV8 rated
LSDM105 1 x 5A leading edge dimmer module
LSFCM202 2 x ceiling fan (400VA max per fan) 3 speed control module |
| Power Conditioning (dimmer modules) |
Regulated outputs
Over voltage protection
Surge protection
Brownout/Sag protection
Spike protection
Soft start
16 bit fade resolution (65535 steps) |
| Control Inputs |
1 x RS485 DyNet serial port
1 x AUX programmable dry contact input |
| User Controls |
Service Switch
Diagnostic LED |
| Internal Controls |
365 day Time Clock
Inbuilt Programmable Logic Controller |
| DyNet DC Supply |
50mA (supply for approx. 2.5 Smart Panels) |
| Preset Scenes |
170 |
| Diagnostic Functions |
Circuit run time tracking on each channel
Device Online/Offline status |
| Supply Terminals |
Line, Neutral, Earth
2 x 2.5mm2 or 1 x 4mm2 conductor size |
| Output Terminals |
Mains Line, Neutral for channels 1-4,
2 x 2.5mm2 or 1 x 4mm2 conductor size
Control 0V/DSI, +V, DSI for
channels 5-8, 1 x 2.5mm2 conductor size |
| Operating Environment |
0ē to 40ēC ambient temperature
0% to 95% RH non condensing |
| Compliance |
CE, C-Tick |
| Enclosure |
ABS DIN Rail enclosure (12 unit) |
| Dimensions |
H 86mm x W 209mm x D 66mm |
| Weight |
Packed weight 0.67kg |
|
