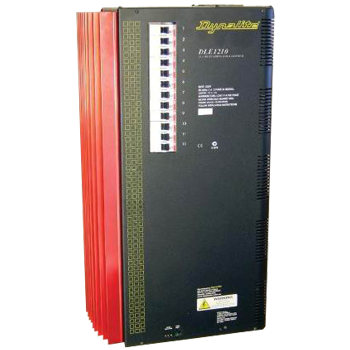

| Supply |
230V 50/60Hz three phase & neutral at
40A
per phase |
| Outputs |
12 x dimmed outputs (leading edge phase
control) at 10A, total box load is 120A max. |
| Protection |
12 x 10A 6kA single pole thermal magnetic
circuit breakers on each channel
1 x 40A 3 pole isolator on the supply(optional) |
| Regulating Device |
Triac 600V 40A nom. 350A surge |
| Power Conditioning |
Regulated outputs
Over voltage protection
Surge protection
Brownout/Sag protection
Spike protection
Soft start
16 bit fade resolution (65535 steps) |
| Cooling System |
Naturally ventilated, no forced cooling,
no
maintenance |
| Interference Suppression |
Iron powder toroidal choke |
| Rise Time |
200”S at 230V |
| Control IO |
1 x RS485 DyNet/DMX512 serial port
1 x programmable AUX dry contact input
8 x multi-purpose programmable as dry
contact/0-5V/0-10V DC analogue inputs |
| User Controls |
Service / Override Switch
Diagnostic LED
3 x Phase indicator LEDs |
| DyNet DC Supply |
200mA (supply for approx. 15 Smart
Panels) |
| Preset Scenes |
170 |

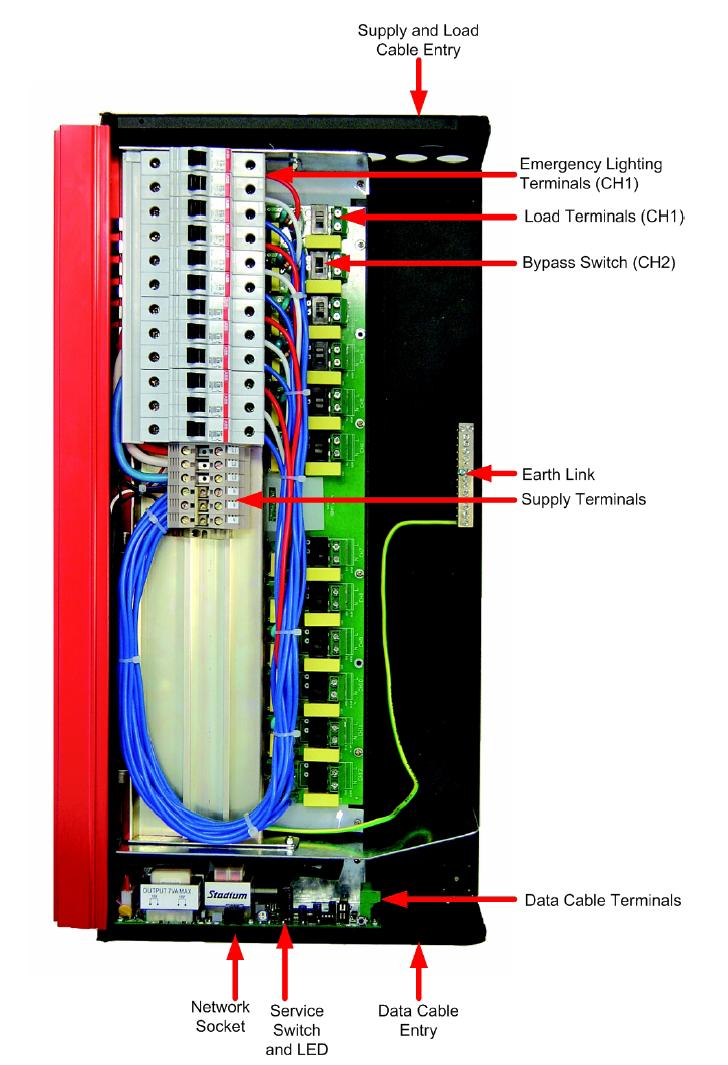

| Supply Terminals |
Line1, Line2, Line3, Neutral, Earth
1 x 25mm2 max conductor size |
| Output Terminals |
Line, Neutral for each channel
1 x 10mm2 max conductor size
Earth Link bar provided |
| Cable Entries |
Mains - 5 x 25mm2 knockouts on a 105mm
x 145mm removable gland plate
Data - 1 x 25mm2 dia. knockout |
| Diagnostic Functions* |
Device Online/Offline status
Circuit breaker trip reporting (optional)
Channel override switches (optional) |
| Compliance |
CE, C-Tick |
| Operating Environment |
0ș to 40șC ambient temperature
0% to 95% RH non condensing |
| Construction |
Alloy/Steel wall mount case with epoxy
finish |
| Dimensions |
H 600mm x W 345mm x D 187mm
(excludes wall brackets) |
| Weight |
Packed weight 30kg |
