- Easy same-button operation turns on the switch and activates the timer
- Control lights and appliances remotely, turning them on and off
- Create whole-house lighting scenes in minutes
- Easy-to-install switch uses INSTEON (patent pending) technology for superior
performance and reliability
- INSTEON technology received the Consumer Electronic Show (CES) Innovations
2005 Design and Engineering Award

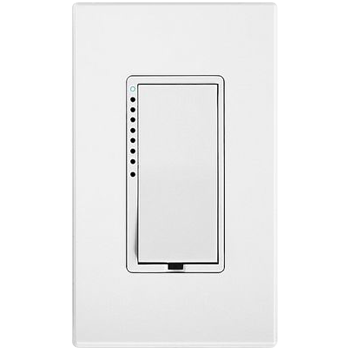

Overview
Worried about throwing away money on electricity because someone forgot to turn
off the lights? Install the INSTEON SwitchLinc V2 Timer, and you won't have to worry
any more. Just replace your existing wall switch with the new SwitchLinc V2 Timer,
and it will turn off all by itself! This is a perfect switch for the kids' room
or for the bathroom fan that you always leave on. It works as a standalone wall
switch timer or with your INSTEON network, adding local countdown timer control
to your INSTEON network without computer-controlled timer software.
Performance Features
Press the paddle top to turn on the switch and activate the built-in timer, which
will automatically turn the light off in 15 minutes. Tap the paddle top again, and
the light will stay on for 1 hour. Each additional tap will add another hour to
the timer, up to a maximum of 24 hours. If you would like the SwitchLinc V2 Timer
to act like a standard switch, press and hold the paddle top for about 2 seconds,
and it will stay on until you turn it off. This INSTEON-enabled switch can still
be controlled like any other INSTEON device.
The SwitchLinc V2 Timer can control up to a 480-watt incandescent or 13A resistive
load. Note: When you use another INSTEON device to control the switch or use the
SwitchLinc V2 Timer to control another INSTEON device, the timer function does not
apply. It will act like a standard SwitchLinc V2 Relay. If you need a switch to
control dimmable devices, use either the SwitchLinc V2 Dimmer , or the high-power
SwitchLinc V2 Dimmer 1000W. You can install the Smarthome Manager Essential's Timer
Software on your computer to schedule any SwitchLinc V2 Timer or any other INSTEON-enabled
device to turn on or off at any specific time or even at sunrise and sunset.
Specifications
|
General |
| Smarthome Product Number |
2476ST, INSTEON SwitchLinc V2
Timer Switch |
| Warranty |
2 years (Upgradeable to 7 years |
|
Operation |
| LED Bar Brightness Indicator |
8 White LEDs, Optional Green,
Blue, Amber, or Red |
| Manual Operation Modes |
INSTEON only, X10 only, INSTEON
and X10 Combo Mode |
| Combo Mode Message Order |
INSTEON, X10, INSTEON cleanup |
| Multi-Way Circuit Support |
One SwitchLinc Dimmer controls
load, Cross-Link any number of SwitchLinc Relays or other INSTEON Controllers |
| Setup Memory |
Non-volatile EEPROM |
|
Timer Features |
| Standard Delay: |
15 Minutes |
| Maximum Delay: |
24 hours |
| Per Tap Delay: |
1 hour for each additional tap |
|
INSTEON Features |
| INSTEON Addresses |
1 hard-coded out of 16,777,216
possible |
| INSTEON Links |
417 out of 16,777,216 possible |
| INSTEON Powerline Frequency |
131.65 KHz |
| INSTEON Minimum Transmit Level |
3.2 Vpp into 5 Ohms |
| INSTEON Minimum Receive Level |
1 mVpp nominal |
| INSTEON Messages Repeated
|
Yes |
|
Mechanical |
| Paddle Type |
True rocker action |
| Paddle and Trim Frame Color |
White installed, Ivory included;Optional
Almond, Black, Brown, or Gray |
| Wire Nuts |
3 included |
| Mounting |
Mounts in single or multiple-ganged
junction box. |
| Operating Conditions |
Indoors, 40 to 104°F, up to
85% relative humidity |
| Dimensions |
4.1" H x 1.8" W x 1.2" D |
| Weight |
3.6 oz |
|
Electrical |
| Supply Voltage |
120 Volts AC +/- 10%, 60 Hertz,
single phase |
| Surge Protection |
MOV rated for 150 Volts |
| Power Wire Leads |
6", 16 AWG, stranded, 600V,
105°C insulation, ends stripped and tinned, LINE (black), LOAD (red), NEUTRAL
(white) |
| Ground Lead |
6", 18 AWG, stranded, bare copper |
| Load Types |
Wired-in incandescent lighting
and inductive loads |
| Maximum Load |
480 Watts incandescent, 13A
resistive |
| Minimum Load |
No minimum load required |
| Certification |
Safety tested for use in USA
and Canada (ETL #3017581) |
|
X10 Features |
| X10 Primary Address |
1 optional (comes unassigned) |
| X10 Scene Addresses |
255 possible |
| X10 Status Response |
Supported |
| X10 Resume Dim |
Supported (by setting Local
On-Level to zero) |
| X10 Powerline Frequency
|
120 KHz |
| X10 Minimum Transmit Level |
3.2 Vpp into 5 Ohms
|
| X10 Minimum Receive Level |
10 mVpp nominal |
| X10 Messages Repeated |
No |
|
