- INSTEON compatibility for outstanding performance
- Use with any standard incandescent lamps, up to 300 watts
- Install and setup in less than 5 minutes
- INSTEON technology received the Consumer Electronic Show (CES) Innovations
2005 Design and Engineering Award
Overview
If you've considered installing automated, remote-controllable lights but have
resisted due to the complexity and reliability of other technologies, LampLinc V2
with INSTEON (patent pending) technology is what you have been waiting for. Setup
is easy - LampLinc V2 Dimmer installs in minutes. The LampLinc V2 Dimmer also works
with legacy X10 products. If you have an existing X10 network, the LampLinc V2 Dimmer
is a good choice. It works with your X10 products and provides an upgrade path to
an INSTEON network.
Performance Features
Upgrade your home with automated lighting, appliances, security, and more by installing
an INSTEON network. The LampLinc V2 Dimmer is a full-featured lamp dimmer. Lamps
in your home can be remotely controlled by plugging each into a LampLinc V2 Dimmer
(each sold separately) and can be remotely controlled with a ControLinc Tabletop
Controller (sold separately). Just getting started on your INSTEON network? The
INSTEON Wireless Starter Kit includes everything you'll need: a ControLinc, two
LampLinc V2 Dimmers, and two SignaLinc RF repeaters. SignaLinc RFs can also be purchased
separately.INSTEON Compatible
The LampLinc V2 is fully INSTEON compatible. INSTEON is a powerful, home-control
networking technology. INSTEON messages are transmitted throughout your home both
wirelessly and through the home's existing wiring. All INSTEON messages are confirmed
and repeated by INSTEON devices in the network, contributing to the outstanding
reliability and performance of INSTEON products.
Set Up and Install in Five Minutes
Every LampLinc has a unique ID, so there is no need to assign addresses or spin
wheels, virtually eliminating the possibility of a neighbor intruding on your network.
This makes installation and setup a simple "Plug and Tap" process. To link two INSTEON
devices, simply put each into setup mode with the press of a button, and they will
then connect automatically.
Scenes
With the large memory cache, there is no practical limit to the number of scenes
a LampLinc V2 Dimmer can be a member of. The LampLinc V2 Dimmer can remember different
light settings for different scenes. For example, create an INSTEON scene (i.e.
"Movietime," "Party," "Romance," etc.) and all the LampLincs that are part of the
scene will adjust accordingly.
Design Features
Status LED
Get a visual indication when LampLinc is sending or receiving INSTEON signals.
Preset Brightness
Your LampLinc can come on to any one of 32 brightness levels. For example, after
watching a movie, a table lamp plugged into a LampLinc can come on to 16 percent
brightness, so you'll easily be able to make your way out of the room without being
blinded by a light at full brightness.
Soft Start or Resume Dimming
LampLincs include the Soft Start feature that gradually brings lights up over
a user-defined period of time (from an instant one-tenth of a second to over nine
minutes). The soft start feature creates an eye-pleasing fade-in effect that also
prolongs bulb life.

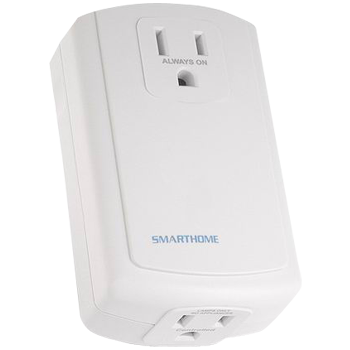

Pass-Through Outlet
In addition to the INSTEON-controlled outlet, LampLinc offers a non-controlled
outlet on the front face. Now you won't have to unplug your lamp modules just to
find a place to plug in the vacuum cleaner.
Safety Tested and Factory Certification
All LampLinc Modules are safety approved. The assembly line for Smarthome Design
Products is ISO 9002 certified. In order to meet the ISO 9002 standards, the entire
factory underwent rigorous inspections of procedures and policies before being thoroughly
audited. The certification received was based on its dedication to high-quality
management systems and strict adherence to quality systems and guidelin
Specifications
Dimensions:
|
4" x 2.5" x
1.25" |
Maximum Wattage |
300 watts |
Status LED |
Yes |
Adj. On Level |
Yes |
Adj. Ramp Rate |
Yes |
INSTEON Scenes |
417 |
Status Response
(2-Way) |
Yes |
Load Monitor |
Yes |
Preset Dim |
Yes |
Fade On & Off
|
Yes |
X10 Primary
Address: |
1 optional
(comes unassigned) |
X10 Scenes: |
256 |
Pass-Through
Outlet: |
Yes, rated
for up to 15 amps |
Outlet # Pins: |
3 |
