Overview

Performance Features

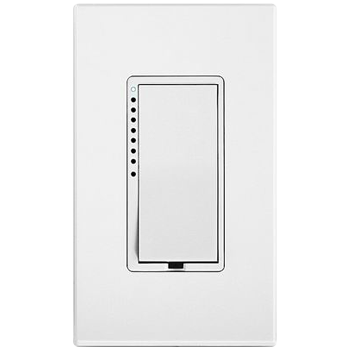

The SwitchLinc V2 Dimmer is so easy to install and set up, and yet so affordable, you'll want to replace all your switches with SwitchLinc dimmers. Just remove the old switch, reattach the line, load, and ground wires with the addition of the neutral wire using the included wire nuts, and you're done. If this is your first INSTEON installation, the best way to purchase a SwitchLinc V2 Dimmer is to buy the complete Dimmer Switch INSTEON Starter Kit. It includes everything required to set up your INSTEON network, including two SwitchLinc V2 Dimmers, a pair of SignaLinc RFs to ensure INSTEON network reliability, and the desktop ControLinc. Learn more about INSTEON here.

Adjustable Ramp Rate

You can adjust the speed at which the controlled light turns on or off, also known as the ramp rate. For example, you may want the light in the stairwell to turn on instantly so you can see where you're walking. Alternatively, you may want the light in the master bathroom to ramp up in a soft, gentle fashion so you're not blinded in the middle of the night. The ramp rate is adjustable between 0.1 seconds and 9 seconds if programmed locally. The ramp rate can extend up to 9 minutes (for a simulated sunrise or sunset) if programmed remotely. This is a great addition to your morning alarm, slowly turning the light on to help you wake up. If you have programmed a slow ramp rate and want to make the light come on instantly, simply double tap the paddle top. To turn the light off quickly, double tap the paddle bottom.

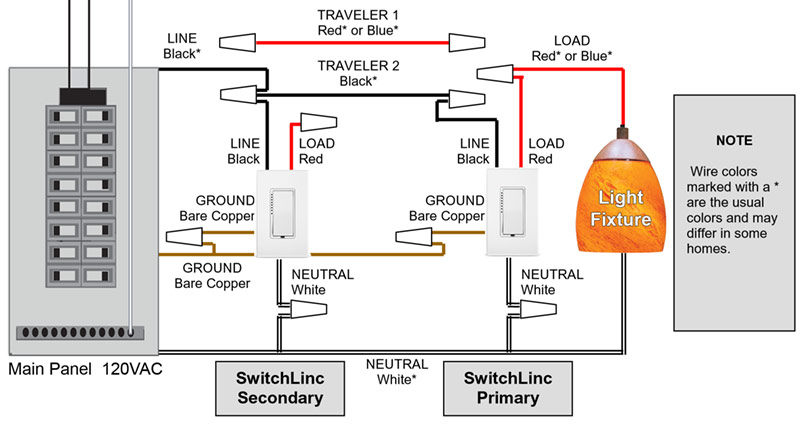

Create Multi-Way Circuits

The SwitchLinc V2 Dimmer allows you to customize your lighting setup no matter how your house is wired. It's simple to create a 3-, 4-, or 5-way circuit. First replace all of the existing switches you want to include in the circuit with SwitchLinc V2 Dimmers. The main dimmer must be connected to the standard wires, load, line, neutral, and ground. The secondary dimmers only need to be connected to line, neutral, and ground. No traveler wires are needed, so it is easy to place one of the dimmers wherever you need it. Cross-linking all of the companion dimmers to the master dimmer is the last step in the process. Now you have a flexible, fully functional multi-way circuit. Note: anytime the SwitchLinc V2 Dimmers are placed direct adjacent to one another, you must subtract 200 watts of capacity from each dimmer. If three dimmers are adjacent to one another, then 400 watts must be subtracted from the capacity of the center dimmer. If more capacity is needed, start out with the higher-rated SwitchLinc V2 Dimmer 1000w.

Compatibility

SwitchLinc V2 Dimmer is fully INSTEON compatible and X10 ready. Homeowners with existing X10 networks can easily migrate to an INSTEON network without having to discard all their existing X10 devices. X10 ready means that it can respond to X10 commands from an X10 controller and it can send X10 commands to X10 devices. Please note that INSTEON devices repeat INSTEON signals but not X10.

Static Memory

All SwitchLinc V2 Dimmer settings are stored in static memory and are not lost during power failures. Additionally, in the event of a power loss, the SwitchLinc Dimmer will return to its last brightness level when power is restored.

Design Features

Beautiful, High-Quality Construction

Unlike other switches, the SwitchLinc V2 Dimmer offers the natural feel of high-end dimmers. You'll love the crisp, tactile response with each touch instead of the mushy feeling of other brands. The SwitchLinc V2 Dimmer is designed and manufactured to high-end specifications and goes through over 10 quality control tests before arriving at your doorstep. This modern Decora-style switch will blend with any room's design. White and ivory paddles are included with each SwitchLinc V2 Dimmer, but additional paddle colors are available and sold separately. Choose the color that best suits your room's decor: Almond, Black, Brown, or Grey. Two paddles are included in each color-change set. Don't forget to order a matching wall plate.

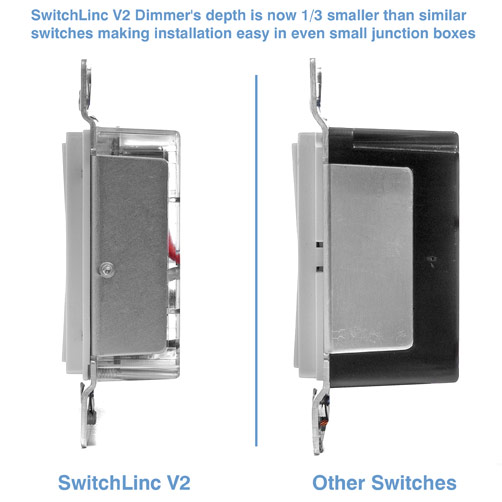

Slim Design Similar dimmers are up to 50 percent deeper than the SwitchLinc V2 Dimmer. Thanks to its slim design, it makes installation easy even in small junction boxes.

Brightness Levels

You can adjust the brightness level of the controlled lamp locally by pressing and holding the top or bottom of the SwitchLinc V2 Dimmer. This is especially helpful when you want to create a theatrical experience when watching your favorite movie. You can also adjust the brightness remotely by using a controller that sends signals to brighten or dim the light. Now you won't even have to leave the comfort of your chaise lounge to dim the light: Your tabletop ControLinc can be placed within arm's reach and plugged into any outlet. When you turn on the SwitchLinc V2 Dimmer, it automatically comes on to full brightness. Setting the preset on level will make the dimmer stop at your preferred choice of 32 brightness levels. With software you can control brightness levels in 1% increments for ultimate flexibility. This is a great feature for your home theater to improve TV viewing. An elegant brightness bar of 8 white LEDs indicates the current brightness of the lights being controlled. To match your room's décor, an LED color change-out kit is available with four colors: red, blue, amber, and green. Green, blue, red, and amber LED light pipes are also available in 4-pair packs.

Scene Lighting

Scenes allow you to control multiple lights, rooms or even the whole home with a single command. Because the SwitchLinc V2 Dimmer can be a member of more than 400 scenes (i.e. "Movie Time," "Party," "Romance," etc.), you'll be able to launch various lighting scenarios with a single button press. These are elegant features usually found only in systems costing tens of thousands of dollars and requiring extensive rewiring of your home. All member lights can ramp to your independently desired brightness levels at your chosen ramp rate(s). So one set of lights can dim slowly, while another set turns off instantly, all controlled with one command from one button. If you want to control multiple scenes from one controller, upgrade to the KeypadLinc V2 Dimmer.

Certifications and Warranty

All SwitchLinc V2 products are safety approved. The factory for SmartLabs Design Products is ISO9002 certified. In order to meet the ISO 9002.pdf standards, the entire factory underwent rigorous inspections of procedures and policies before being certified. The certification received was based on its dedication to high-quality management systems and strict adherence of quality control systems and guidelines. Because of this, Smarthome stands behind the entire SwitchLinc V2 line of products with a full 2-year warranty.
