- Switching, toggling
- Dimming (single level / two level control)
- Shutter. Curtain/ Blinds control (single and two level control)
- Value transmitter
- Light mood recall with memory
- Light mood recall without memory
- Brightness value transmitter (0…1500Lux)
- Presence push-button for thermostat (comfort / stand by mode)
- Set temperature offset adjustment (+/-)
- Enable/disable function for single push-buttons or for the whole RCD
- Status LED for each push-button with separate objects
- Display indication week day, time or set or real temperature, actual
operation mode of the thermostat

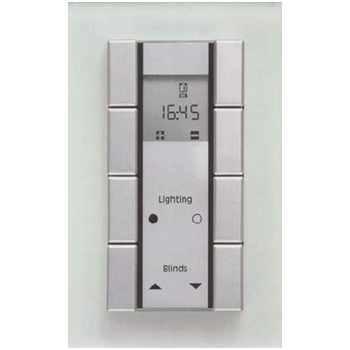

Overview
The Room Controller with display combines three devices, Jung Designer range switches
which are Universal Push Buttons plus additional features, Room thermostat with
continuous control or 2 point switch control method for heating and/or cooling and
additional heating/cooling system and lastly LCD display (visible: 300mm / 35mm),
with restricted functions.
Performance FeaturesFollowing the trend towards
minimalism, compact devices which combine many functions in one unit are increasingly
in demand. One of these devices is the room controller for KNX and LON installations.
It enables the control of several light sources in a room either separately or together
as well as the individual management of blinds.
Three individual components were previously required to offer the functional capability
which the KNX room controller provides in a single device. It adopts the full functionality
of a universal switch sensor, a room thermostat and an information display which
can indicate the date, time and temperature.
Specifications
| Supply Voltage |
24 V DC(+6V / -4V) via integrated BCU |
| Power consumption |
max. 240 mW |
| Connection |
instabus connection book |
| Range of measurement |
0 to 40oC |
| Comfort temp. |
7 to 40oC |
| Set Point offset |
max. +- 10K |
| Protection |
IP20 |
| Operation temp |
-5 oC to + 45oC |
| Storage temp |
-25 oC to + 75oC |
|
