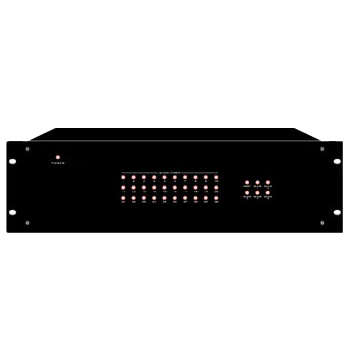

Description
- Emergency zone signal interface provides a programmable interface with FAS
- Microprocessor controlled
- 30 zones input, expandable to 120 zones
- Ideal for fire alarm control of phased evacuation
- Send emergency condition signal every 5 seconds in case master controller failure
- Self-diagnostics.
- AC~220V or DC~24V operation
Specifications
| Power Supply |
AC~220V/50HZ(DC24V) |
| Back Battery |
12A/24VDC (battery material : pb,acid, A Rear Panel with battery, B Rear Panel with 24V DC Input) |
| Address zone |
HOST 1-30zone、SLAVE1 31-60zone、slave 2 61-90zone、slave 3 91-120 zone |
| Signal Input |
30 zones, N/O input Screw Fixings |
| Display |
30 Zones LED Indicators 4 LED expansion Indicators |
| Communication Protocol |
RS422RJ45 in/out RX+ RX- TX- TX+ screw terminal block |
| Band Rate |
4800bps |
| Fuse |
AC FUSE 5A |
| Power Consumption |
30W |
| Dimension (W x H x D) |
484x404x132mm |
| Case Material |
12.5 kg |
| Weight |
Black stainless steel |
|
