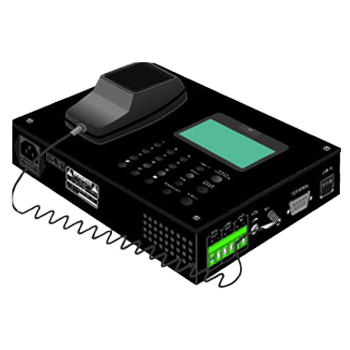

Wall Mount Adapter, with 2×10W amplifier and 4ohm speaker terminal, with LCD and remote controller
Description
- 4"LCD English display, human operation interface.
- With local program insert module to have instantaneous broadcast function.
- Support IR control to select local stored program.
- Built-in 10W stereo power amplifier.
- Support local mic and line input, with volume control.
Specifications
| Model |
T-6705 |
| Network Input |
Standard RJ45×1, 1 Input |
| Protocol Support |
TCP/IP, UDP, IGMP (group broadcasting) |
| Transmit Speed |
10/100Mbps |
| Audio Format |
16 digit stereo CD tone |
| Frequency Output |
20Hz～16KHz |
| T.H.D |
≤0.3% |
| S.N |
≥75dB |
| Speaker Output Impedance And Rated Power Output |
8Ω, 1×10W Industrial Standard Screw terminals |
| Aux Line Voltage Input |
400mV Industrial Standard Screw terminals |
| Sources Voltage Output |
2 ×775mV Industrial Standard Screw terminals |
| Source Impedance Output |
1KΩ |
| Working Temperature |
-20℃～+60℃ |
| Working Humidity |
10%～90% |
| Power Consumption |
≤18W |
| Power Supply |
～110V/60Hz or ～230V/50Hz |
| Dimension |
220 ×157 ×53mm |
| N.W |
3Kg |
|
