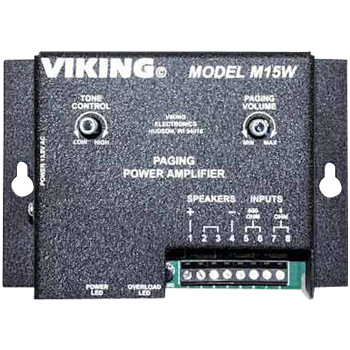

SH609 VIKING Paging Power Amplifier


VIKING Paging Power Amplifier

  • Paging volume control
  • Tone control
  • 600 ohm input
  • 8 ohm input
  • 15 watts of paging power

Overview

The M15W is designed to add more paging power to almost any amplified paging product, or it may be used as a primary paging amplifier. Used as a primary paging amplifier from a 600-ohm source and as an additional amplifier from an 8 ohm source

Performance Features

Audio can be input from a 600 ohm source or from an 8-ohm amplified source. The 15 watt output can drive an eight to four ohm load, or two separate two-ohm loads, which simplifies installation of up to eight 8-ohm speakers.

Specifications

Power 120V AC/13.8 VAC 1.25A, UL
listed adapter provided
Dimensions 133mm x 89mm x 44mm
(5.25" x 3.5" x 1.75")
Shipping Weight 1.0 kg (2.2 lbs)
Environmental 0° C to 32° C (32° F to 90° F)
with 5% to 95% non-condensing humidity
Paging Output 15 watts - powers up to (8) 8-ohm speakers
Frequency Response 100 - 10K Hz
Sound Pressure 118 db @ 1 meter
Speakers (1) 25AE 8-ohm paging horn included, (8) maximum
Maximum Speaker Run 91m (300 ft) maximum 18 AWG
Connections 8 position screw terminal block
