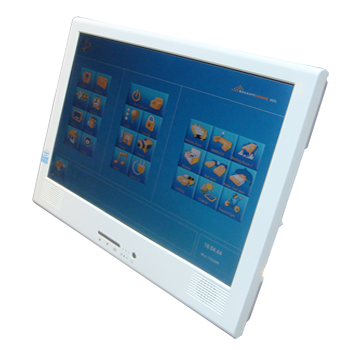

ParametersTouch Screen Display Display Type:
Display Size:
Resolution:
Luminance:
Video Window:
| 16 Bit ft True color LCD
14 inches diagonal
800x600 pixels
3 levels adjustable contrast
15 levels adjustable size |
Processor CPU:
Processing Speed:
| 32-bit Samsung ARM
200 MIPS |
Memory Internal
| 64M SDRAM,32M Flash |
Integrated Video Input
Composite video
Control Ports and signal Connectors
LTX-1200C:
Interface Module: | 1 RJ45 port for CR-NET connection and composite video signal transmission via the included interface module
1 RJ45 port for CR-NET connection and composite video signal transmission to the touchpanel;
1 RJ45 port and 1 terminal block to CR-NET system,1 composite video input on BNC connector | PC Console Port 1Ф USB 1.1 communication Power Supply CR-NET power Software
Touch Panel Builder: Supports pictures, legend, characters, 3D/2D keys and animated pictures Weight
3.2kg
|
