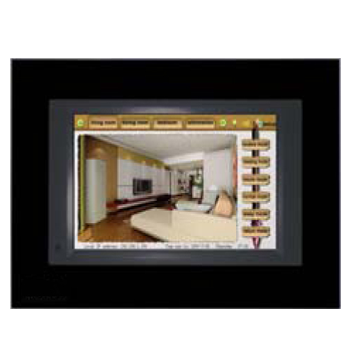

Elegance with Real Room Picture, can store up to 16 different room Pictures , control your Lights by single press on the lights icon, with different 6 scenes for each room, 2 way communication. Update you on your home lights status, 7″True Color Touch Screen, embedded RTC Real Time clock to automatically turn your lights ON/OFF. User Friendly  interface which comes with different skins.

Screw Less Mechanism Mounting

Features

• FLASH ROM：64M
• SDRAM：64M
• CPU：400MHZ
• built-in RTC real time clock
• Operation system：WinCE 4.2net
• Real room picture , total of 16 room with 6 different scenes for each room
• 2 way communication , showing you which lights is ON in every room
• Convenient and User Friendly
• Fast Uploading and downloading the settings  to and from the Touch screen
• 2 icons status auto changing regarding the Lights statues
• Slider for each lights for dimming like I-Phone

Specifications

Power Input: 12-24V DC
Power Consumption: 500mA/DC24V
Ambient Conditions:
Working Temperature: 0℃- 45℃
Working Relative Humidity: 20% - 90%
Storage Temperature: -40℃- +55℃
Storage Relative Humidity: 10% -  93%
LCD Brightness: Screen safer mode dim  backlight of screen with auto adjustable brightness and contrast
Interface: 6 real room pictures , touch screen
Installation: Wall mounting
Mounting: it inside its special  back box, screw less
Graphics: Bmp and Text
Communication: Data Connection
Addressing: MAC & IP

Dimensions

207.5×150.9×32.9(mm)

Applications

• Use in home main living room
• Bed rooms
• Restaurant and offices

Available Accessories

• GI Back Box
• Black Glass Cover Plate
• White Glass Cover Plate
