DIY system that can control, record and synchronize the show of DMX, lights, Infrared for TV DVD , Music, Picture, Video and play it in any time he want.

Can be used in any location that require Stage lighting , Party halls, Multi Purpose room, or Home theater.

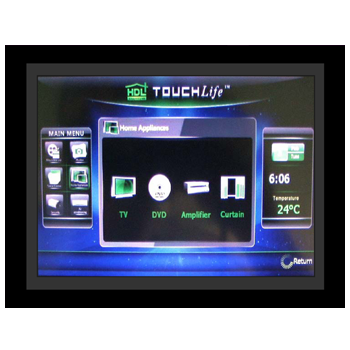

7″True Color Touch Screen, embedded RTC real time clock

Features

• FLASH ROM：64M
• SDRAM：64M
• CPU：400MHZ
• built-in RTC real time clock
• Operation system：WinCE 4.2net
• DIY can record any user show and play it in any time he want.

Specifications

Power Input: 12-24V DC
Power Consumption: 500mA/DC24V
Ambient Conditions:
Working Temperature: 0℃- 40℃
Working Relative Humidity: 20% - 90%
Storage Temperature: -40℃- +55℃
Storage Relative Humidity: 10% -  93%
LCD Brightness: Screen safer mode dim  backlight of screen with auto adjustable brightness and contrast
Installation: Wall mounting
Mounting: Fit inside its special  back box, screw less
Graphics: Bmp and Text
Communication: Data Connection
Addressing: MAC & IP

Dimensions

207.5×150.9×32.9(mm)

Applications

• Disco, Bars
• Party halls, Multi Purpose room
• Meeting room, home cinema

Available Accessories

• GI Back Box
• Black Glass Cover Plate
• White Glass Cover Plate
