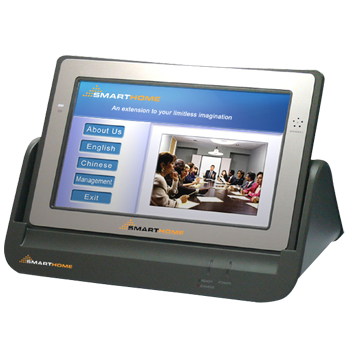

FeaturesA wide(16:9) TFT LCD screen with 800*480 pixel
Touch range: 12 bit A/D module and not more than 0.5mm
allocation error.
Visible angle: Horizon±60° Vertical±35°
Button:3D and animation buttons
Height/Width contrast:16:9
With a bright and infrared sensor
Support video, picture, text,3D button
Wireless communications with the controller host
Wireless video picture-in-picture function
Standby delay, off delay, Network ID, volume and screen
brightness can be adjusted
USB communication port ParametersTouch Panel Display Display type:
Resolution:
touch Range:
Control:
Application:
Illumination: | TFT LCD
800*480pixel
10 inches diagonal
Wireless unidirectional
Connect with PGMII and Touch AV
EL |
Memory Control Control distance:
Wireless transmitting frequency:
Communication interface:
External power supply:
Dimension:
Weight:
| 50m (open area)
433MHz,2.4GHz
USB
DC12V/1.2A
196L × 131W × 31D
about 760g | Battery Battery capacity:
Consecutive working time:
Stand-by time:
Saturation time:
Temperature of charging:
Battery specification:
| 5000mAH
> 6 hours
up to 60days
5 hours
about 35°-50°
Lithium 7.2V rechargeable battery |
|
