- 16 channels Video/Audio recording
- Real-time display and TV output
- TCP/IP remote access
- Powerful Ethernet capabilities
- Makes your DVR application accessible through the internet, remote control,
handheld devices or 3G mobiles
- Constant Audio and Video surveillance
Overview
Combo Card is GeoVision top level product series. With the 3-in-1 combo card
(16 channels Video/Audio recording, real-time display and TV output), you can build
up a cost efficient but high performance DVR system to secure your environment more
easily.
Performance Features
The TCP/IP remote access and powerful Ethernet capabilities make Combo Card reliable
for local and remote real-time network surveillance environments. Access through
IE browser, from GeoVision remote applications, handheld devices or 3G mobiles allows
video playback. An option for MPEG4/MPEG2 hardware compression card provides the
system with full D1 resolution, presenting you with the most superior video quality
that even the most demanding professionals will envy.
Furthermore Combo Card compatibility with GeoVision accessories makes it suitable
for areas where constant video and audio surveillance is critical, such as casinos,
shopping malls, chain stores, banks, and public facilities
Specifications
Video Input
|
16
|
Audio Input
|
16
|
TV Output
|
1
|
Recording Rate
At 320 X 240 Resolution
(NTSC)
(PAL)
|
480 fps
400 fps
|
Display Rate
(NTSC)
(PAL)
|
480 fps
400 fps
|

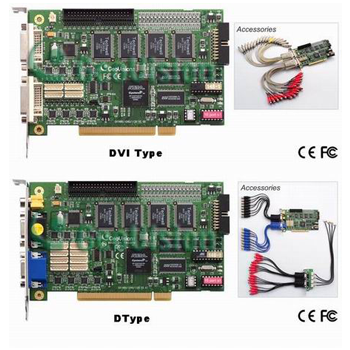

Input Type

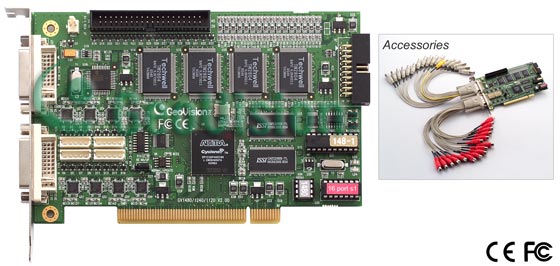

DVI

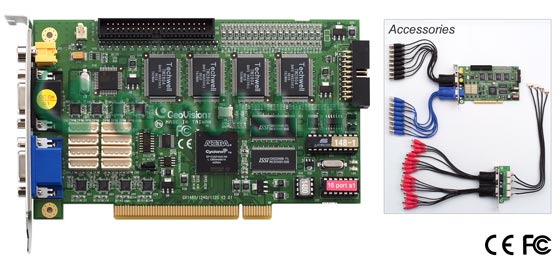

D-Type
|
1 PCI Slot : DVI x 2 (one for 16 video,
one for 16 audio)
2 PCI Slots : DB15 x 2 (for video) ; DB9 x 2 (extension card for audio)
|
Video Compression
|
Wavelet, MPEG-4, Geo MPEG4, Geo MPEG4 (ASP),
Geo H264
|
Compression Rate
|
Variable, 300:1 Maximum
|
Video Resolution
|
Full D1, Half D1, CIF
|
Video Signal Type
|
NTSC, PAL
|
Networking
|
TCP / IP, LAN, WAN, Internet, Modem Dial-up,
Modem-to-Modem, ISDN
|
Backup Device
|
HDD, NAS, CD-R / R-W, DVD±R / ±RW, DVD±R(DL),
ZIP, JAZ
|
Operating System
|
Windows 2000, Windows XP, Windows Server 2003
|
|
