- Compact size of 60% less than a traditional 4U rackmount DVR
- Dual gigabit LAN
- Compatible with full selections of GeoVision accessories
- GV-Keyboard and GV-IR Remote Control included
- User-friendly software interface
- Enhanced network security with RSA encryption
- Recovery DVD in case of system failure
- Operates on Windows XP Professional (Embedded System)
- Latest GeoVision surveillance software pre-installed and upgradeable
- Compatible with GeoVision value-added package with POS/LPR/CMS/Access
Control/NVR Solution
- FCC/CE Certification • 24-hour technical support
- Complete product information and testing reference • Available in 14
languages

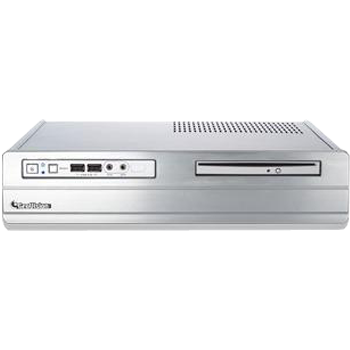

Overview
The words small and agile have never been more significant in the security industry.
The GV-Mini DVR System emphasizes both size and lightness. Hence it stands as a
new solution for small to medium-scale surveillance enterprise. The GV-Mini DVR
is a compact system 60% smaller (360 x 78 x 285 mm) and lighter (5.4Kg) than a traditional
4U rackmount DVR system.
It shines with its silver frame, lean chassis with high-performance recording
capability. Quality equipment includes GeoVision's video capture card and updated
surveillance software. The networking ability offers remote access and control over
the system, while GeoVision's new compression formats provide superior video transmission
and quality. A wide range of accessories will cater to any installation or even
budget needs. Small is definitely beautiful!
Specifications
| |
GV-1240M |
GV-1120M |
| CPU |
Intel Pentium 4 3.0 GHz, 800MHz FSB
| RAM |
512 MB (256MB x 2) Dual Channel
|
| Video |
Codec |
Wavelet, MPEG-4, Geo Mpeg4, Geo Mpeg4 (ASP),
Geo H264 |
| Input |
8 / 16 Channels |
16 Channels |
| Audio |
Compression |
G.723, ADPCM |
| Input |
8 / 16 Channels |
16 Channels
|
| Display Frame (Max) |
NTSC: 480 FPS / PAL: 400 FPS |
| Recording Frames (NTSC / PAL)
|
240 / 200
(320 x 240) |
120 / 100
(320 x 240) |
| Video Resolution |
NTSC: 720 x 480 / 720 x 480 De-interlace
/ 720 x 240 / 640 x 480 / 640 x 480 De-interlace / 640 x 240 / 320 x 240
|
| PAL: 720 x 576 / 720 x 576 De-interlace /
720 x 288 / 640 x 480 / 640 x 480 De-interlace / 640 x 240 / 320 x 240
|
| Backup Type |
DVD+R (DL) / DVD-R (DL) / DVD+R / DVD+RW
/ DVD-R / DVD-RW / CD-R / CD-RW
|
| Recovery DVD |
Automatic System rebuild |
| HDD |
Hot Swap Drive Bay SATA USB 2.0
|
| Alarm (optional) |
Sensor Input |
8-72 |
| Alarm Output |
16-144 |
| Connector |
Ethernet |
RJ-45, 10 / 100 / 1000 Mbps x 2
|
| USB 2.0 |
6 high speed USB 2.0 ports (2 Front, 4 Rear)
|
| Remote Access |
TCP / IP |
| Operating Temp |
10 ~ 35 °C (50~95 °F) |
| Humidity |
Maximum 80% RH (non-condensing)
|
| Dimensions (W x H x D) |
360 x 78 x 285 (mm) - 14 x 3 x 11.2 (inch)
|
| Weight |
5.4Kg (net) - 14.1Kg (gross) |
| Hardware Accessory |
GV-Keyboard, GV-IR Remote Control
|
| Optional Product |
GV-IO / GV-RELAY / GV-Data Capture V2E /
GV-Hub / GV-COM |
| Language |
English / Arabic / French / German / Hebrew
/ Hungarian / Japanese / Polish / Portuguese (Brazil) / Russian / Spanish
/ Simplified Chinese / Traditional Chinese |
|
