- JPEG 2000 Algorithm compression
- The best picture quality for playback
- 4 channel video 120(100)fps recording capability
- Triplex ( Recording / Ethernet)
- Multi Language OSD

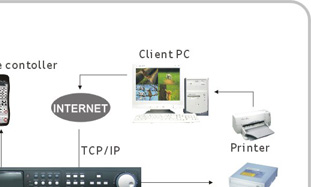

- Remote viewer for good picture quality through TCP/IP
- Jog-shuttle for convenience search
- VGA option available (Supporting TFT LCD Monitor)
- USB(Device) port for firmware upgrade
- Easy PTZ camera control by front panel buttons
- Remote Controller
Overview
Ntic Digital Multiplexer with 8 channels, jpeg 2000 algorithm offers best picture
quality for playback, remote viewing over the internet, VGA option available supporting
TFT LCD Monitor
Specifications
| Model
Number |
JPEG-2000 Algorithm
|
| Storage
Capacity |
Up to 2 HDDs with
no limitation in capacity |
| CD-RW
|
For Backup
|
| VGA
|
1CH (Supporting TFT
LCD Monitor/ Option) |
| Video
Input |
4CH |
| Video
Output |
Monitor / VCR
|
| Split
Screen |
Full screen, Quad
display |
| Compressed Rate
(Image size fixed) |
Basic |
8/KB (720x240/NTSC, 720x288/PAL)
each picture |
| Normal |
12/KB (720x240/NTSC, 720x288/PAL)
each picture |
| Enhanced |
16/KB (720x240/NTSC, 720x288/PAL)
each picture |
| Fine |
20/KB (720x240/NTSC, 720x288/PAL)
each picture |
| Super Fine |
24/KB (720x240/NTSC,
720x288/PAL) each picture |
| Recording
Speed |
NTSC |
60fps(720x240), 120fps(360x240),
|
| PAL |
50fps(720x288), 100fps(360x288),
|
| Recording
Resolution |
Full (720x240 / 720x288),
Dual(360x240/ 360x288), |
| Display(frame/sec)
|
Real time for all
channel |
| Simplex/Duplex/Triplex
|
Duplex (Recording
/ Ethernet) |
| Zoom
|
Available
|
| PIP
|
TIME & DATE SEARCH
|
| Motion
Detect |
Area division : 16x12
|
| Recording
Mode |
Time, Motion, Schedule,
Alarm |
| Search
Mode |
Percentage Search,
Date/ Time Search, Event Search |
| Password
Protection |
Admin, Manager, User1~8
Allowed to access the system |
| Alarm
Input |
4 Alarm ( NO/NC)
|
| Relay
Output |
1 (NO/NC)
|
| Backup
|
CD-RW back-up, Download
via IP Network, VCR |
| IR Remote
Controller |
Built-in
|
| Network
|
Ethernet(TCP/IP),
Remote viewer program included(save on pc or print picture by picture in
jpeg format or in AVI format) |
| Firmware
upgrade |
USB port for firmware
upgrade |
| Operation Temperature
|
41 ~ 104 degree Fahrenheit (
5 ~ 40 degree Centigrade ) |
| Operation Humidity |
Less than 90% |

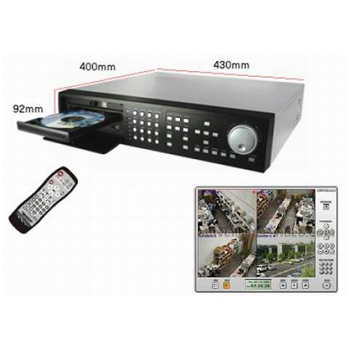

| Dimension |
430mm(W) x 400mm(D) x 92mm(H) |
| Gross Weight |
Approx 7.5 kgs (w/o HDD) |
| Power
Supply |
DC Adapter(12V DC
8.3A) |
|
