- Perfect for standalone surveillance applications
- Front panel IR receiver
- Rear panel 3.5mm IR input
- Optional Z•038 handheld remote control
- Rear panel RS-485 input compatible with the Z•630 Multi-room Controller
RS-485 bus
- RS-232 Interface: 9600/19200 baud rate, dipswitch selectable
- HD serial control input
Overview

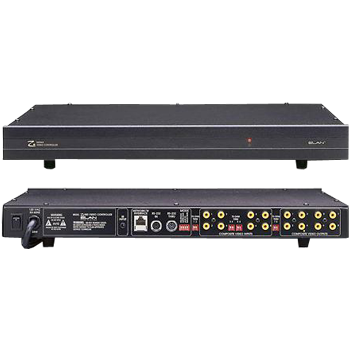

The Z•880 can be used to access any A/V source from any zone.
When using VIA! Touch Panels, the Z•880 is an essential component––allowing you
to view up to eight video sources on each
VIA! Touch Panel Since it is IR and RS-232 controllable,
the Z•880 is the perfect video switcher for any stand-alone commercial or security
application.
With the Z•880, each one of eight outputs can independently select any one of the
eight video sources. Wideband switch matrix and video line drivers are placed on
a premium double-sided flooded ground plane circuit board. This ensures that the
highest quality video and cross talk performance specs are maintained. All of this
means crystal clear video distribution–– even to TVs located up to 500 feet away!
Design Features
User/Installer-friendly LED readouts, 75 Ohm/Hi-Z input dipswitches, and RS-232
baud rate selectors provide many application opportunities for this unit. Control
interfaces include front panel IR receiver, rear panel IR Input, RS-485, RS-232,
and HD Series Serial Control Data Links.
Link up to three Z•880s together to create an 8 x 24 video switch matrix under
IR, RS-232 or HD system control. Three units can also be linked together to create
an 8 x 8 component video switcher. The Auto Track button on the Z•038 remote (optional),
synchronizes all outputs to the system controller.
Specifications
| Input Impedance |
75 Ohms or Hi-Z |
| Output Impedance |
75 Ohms
|
| Video Gain |
0dB Nominal
|
| Freq. Resp |
+/-1.0dB, DC
to 35mHz |
| Bandwidth |
DC to 35MHz Min |
| Chrominance to
Lum. Delay |
< 10nSec
|
| S/N Ratio |
>60dB
|
| Differential
Phase |
< 1 Deg
|
| Differential
Gain |
< 1%
|
| Short Time Distortions |
1 NRE
|
| Crosstalk: |
>70dB |
| Power Requirements |
120VAC, 12W
|
| Dimensions |
Z·880: 17" W
x 2-1/4" H x 10" D |
|
