Overview

The current state-of-the-art, SperiorSpeedDome Day/Night utilizes a 22x optical zoom combined with a 10x digital zoom, providing a 220x total zoom. Digital signal processing (DSP) provides enhanced clarity, color, and detail in well lit or low light applications.

Performance Features

The dome’s internal multi-protocol receiver enables the dome to be connected directly to a host of systems including those from other vendors. Privacy zones can be set up to prevent users from viewing sensitive areas. The dome’s advanced alarm handling enables alarms to be processed internally by the dome, externally by the controller, or by both the dome and the controller.

A “resume time” feature allows users to establish a default reverting time from activated alarms. A “home position” feature allows the users to establish a default preset for the dome when the dome is not in use. The dome has the ability to provide status on input load voltages, protocol, model name and software version. Other features include wide dynamic range, digital slow shutter mode, dome generated programmable on-screen text of camera ID user definable settings for features such as line-lock, maximum zoom, auto flip, AGC and white balance.

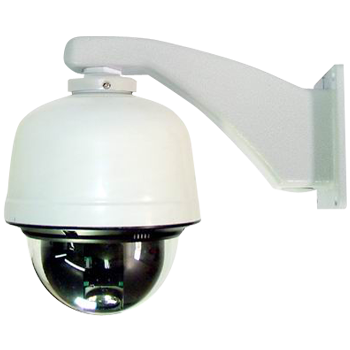

For using outdoor, the SuperiorSpeed Dome DSC-230SE is suitable to be used at outdoor environments. This integrated dome now features a reinforced integrated outdoor housing as heavy duty vandal resistant housing

Specifications
