- 0.4" thick solid brass
- Lo-lux/high-res all-weather
- color camera
- Wide viewing angle
- Auto Iris
- Tarnish-proof faceplates match DS1500/DS1550 Door Stations
- Fits in DBK10006P Rough-In Bracket
Overview

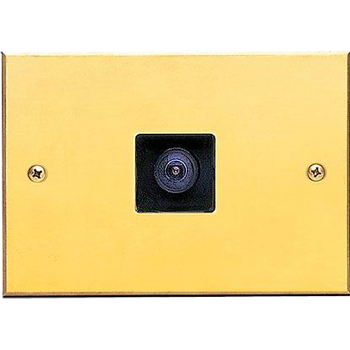

The DC2000 is a stand-alone color CCTV camera mounted to a Brass,
Chrome or Ivory faceplate. It can be used by itself wherever an attractive, flush-mount,
color camera might be needed, or in conjunction with a
Elan Door Station.
Performance Features
The DC2000 features a high-resolution, low lux, 1/3" CCD imager
that provides clear pictures even under low light conditions. The built-in auto
iris ensures optimal picture on bright sunny days without “blooming” or “washouts”.
The fixed focal-length lens has a horizontal viewing angle of 120° and a vertical
viewing angle of 100° with no “fish eye” distortion. Each custom faceplate is made
from 0.4" solid brass with a tarnish-proof zirconium nitride finish and matches
the Door Station Faceplates.
Specifications
| Imager |
1/3" CCD |
| Auto Iris |
1/50 – 1/10000 sec |
| Lux |
0.5 min |
| Resolution |
380 TV lines |
| Horizontal Viewing Angle |
120° |
| Vertical Viewing Angle |
100° |
| Swivel |
+15°/-15° left to right |
| Video Output |
1V peak-to-peak |
| Video Output Impedance |
75 Ohms |
| Power Requirements |
12VDC @ 90mA |
| Wiring Requirements |
18AWG, 2 conductor (for Power), RG-6 or
RG-59 (for Video), max. 200 ft. |
|
