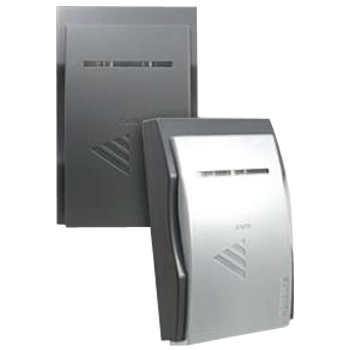

- Proximity card reader, can read EM card number.
- Interface: ABA T2, Wiegand 26 bit, RS-485.
- Weather proof, can install in-door and out-door, can fir all situations.
- Provide sound signal and can adjust the sound by efficient situation.
- The case sensor provide the controller to guard against remove, when
destroy by violence, the warming message will be show.
- Quick response, low interference, low power consumption and highly stable.
- Reading range up to 15cm without interference.
Specifications
| Frequency |
125Khz |
| Reading range |
15cm (max) |
| Indicators |
1 pair of dual color LED (Power / Status) |
| Beep tone |
Buzzer |
| Operating voltage |
DC 12V@200mA |
| Power consumption |
1.5W (max) |
| Temperature |
-10degC – 55degC
14F -131F |
| Humidity |
20% - 95% (non-condensing) |
| Size |
76Wx120Lx23H (mm) |
| Weight |
130g |
|
